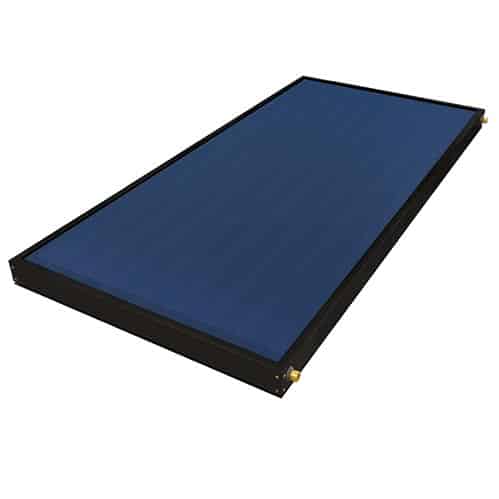

| TECHNICAL DATA |
Dimensions (mm) |
1988x1218x90 |
1988x1041x90 |
1927x927x90 |
| TECHNICAL DATA |
Housing |
Housing made of electrostatic lacquered aluminum |
Housing made of electrostatic lacquered aluminum |
Housing made of electrostatic lacquered aluminum |
| TECHNICAL DATA |
Weight (kg) |
44 |
37,2 |
34 |
| TECHNICAL DATA |
Gross area (m²) |
2.42 m² |
2.07 m² |
1.79 m² |
| TECHNICAL DATA |
Opening area (m²) |
2.23 m² |
1.92 m² |
1.62 m² |
| TECHNICAL DATA |
Absorber area (m²) |
2.23 m² |
1.89 m² |
1.59 m² |
| ABSORBER |
Absorber material |
Almeco-Tinox highly selective copper |
Almeco-Tinox highly selective copper |
Almeco-Tinox highly selective copper |
| ABSORBER |
Absorption / Emittance |
0,95 / 0,03 |
0,95 / 0,03 |
0,95 / 0,03 |
| ABSORBER |
Welding method |
Ultrasonic welding |
Ultrasonic welding |
Ultrasonic welding |
| ABSORBER |
Heat carrier volume (lt) |
1,27 |
1,07 |
1 |
| COPPER PIPES |
Diameter of absorber pipe / header pipe (mm) |
8/18 |
8/18 |
8/18 |
| COPPER PIPES |
Number of pipes |
10 |
9 |
8 |
| GLASS |
Glass material |
Tempered glass with a little iron |
Tempered glass with a little iron |
Tempered glass with a little iron |
| GLASS |
Glass thickness (mm) |
4 |
4 |
4 |
| ISOLATION |
Insulation material |
Rock wool |
Rock wool |
Rock wool |
| ISOLATION |
Wool density (kg/m³) / Wool thickness (mm) |
50/40 |
50/40 |
50/40 |
| MAXIMUM SCORE |
stagnation temperature (°C) |
211 |
211 |
211 |
| MAXIMUM SCORE |
Maximum working pressure (bar) |
8,6 |
8,6 |
8,6 |
| MAXIMUM SCORE |
Nominal flow (lt/h) |
120 |
105 |
100 |
| MAXIMUM SCORE |
Base Sheeting |
Embossed aluminum sheet |
Embossed aluminum sheet |
Embossed aluminum sheet |
| MAXIMUM SCORE |
Type of assembly |
Inkroof-Onroof-Flat Roof |
Inkroof-Onroof-Flat Roof |
Inkroof-Onroof-Flat Roof |
